socMovGen Class Reference

#include <socMovGen.h>

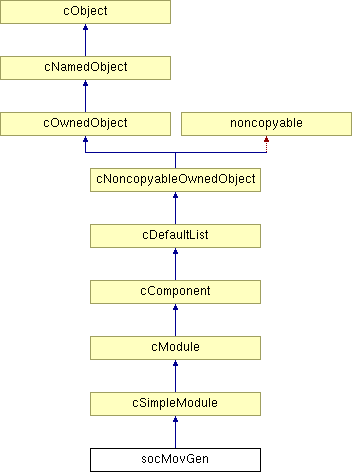

Inheritance diagram for socMovGen:
cSimpleModule cModule cComponent cDefaultList cNoncopyableOwnedObject cOwnedObject noncopyable cNamedObject cObject

List of all members.

Protected Member Functions

virtual void initialize (int)
 generates the mobility tracefile according to the given parameters

Protected Attributes

double totalSimulationTime
 Sets the total simulation time.
double reconfigurationInterval
 Sets the reconfiguration interval.
int numberOfEpochs
 Sets the number of the epochs.
double minHostSpeed
 Sets lower bound of the speed of the hosts (in m/s).
double maxHostSpeed
 Sets upper bound of the speed of the hosts (in m/s).
double connectionThreshold
 Sets the connection threshold, for which a frienship is regarded.
double sideLength_X
 Defines the x-axis length of the simulation ground (in meters).
double sideLength_Y
 Defines the y-axis length of the simulation ground (in meters).
int numberOfRows
 Sets the number of rows of the simulation ground.
int numberOfColumns
 Sets the number of columns of the simulation ground.
double radius
 Sets the transmission range (in m) -- not so important.
double rewiringProb
 Sets the rewiring probability during the model initialization.
int numberOfGroups
 Sets the initial number of groups for the Caveman model.
int numHosts
 Used for the total number of hosts participating in the simulation.
int numberOfTravellers
 Sets the number of travelers.
int pauseTime
 Sets the maximum pause time duration.
double travellerSpeed
 Sets the speed of the travelers.
unsigned inputSeed
 Sets the seed of the Random Number Generator.
bool girvanNewmanOn
 Sets the Girvan-Newman algorithm on/off.
bool colocationTracesOn
 Sets the colocation traces on/off.
bool communitiesTracesOn
 Sets the communities traces on/off.
bool deterministicOn
 Sets the deterministic selection of the nodes on/off. If true the selection is deterministic, if false is probabilistic.
bool generateXML
 Generates XML.
bool readAdjacency
 Indicates whether an input adjacency file will be used.
bool outAdjacency
 Sets the output adjacency file generation on/off.
std::string inputFile
 Sets the the name of the input adjacency file.
std::string mobType
 Three mobility models are supported, the CMM, the HCMM and the ECMM.

Member Function Documentation

void socMovGen::initialize ( int  stage  )  [protected, virtual]

generates the mobility tracefile according to the given parameters

Reimplemented from cComponent.

00038 {
00039         if(stage==0)
00040         {
00041                 // Read ned parameters
00042                 totalSimulationTime=par("totalSimulationTime");
00043                 reconfigurationInterval=par("reconfigurationInterval");
00044                 numberOfEpochs=par("numberOfEpochs");
00045                 minHostSpeed=par("minHostSpeed");
00046                 maxHostSpeed=par("maxHostSpeed");
00047                 connectionThreshold=par("connectionThreshold");
00048                 numberOfRows=par("numberOfRows");
00049                 numberOfColumns=par("numberOfColumns");
00050                 radius=par("radius");
00051                 rewiringProb=par("rewiringProb");
00052                 numberOfGroups=par("numberOfGroups");
00053                 numberOfTravellers=par("numberOfTravellers");
00054                 travellerSpeed=par("travellerSpeed");
00055                 girvanNewmanOn=par("girvanNewmanOn");
00056                 colocationTracesOn=par("colocationTracesOn");
00057                 communitiesTracesOn=par("communitiesTracesOn");
00058                 deterministicOn=par("deterministicOn");
00059                 generateXML=par("generateXML");
00060                 readAdjacency=par("readAdjacency");
00061                 inputFile=par("inputFile").stringValue();
00062                 mobType=par("mobType").stringValue();
00063                 pauseTime=par("pauseTime");
00064                 outAdjacency=par("outputAdjacency");
00065
00066                 // Read number of Hosts and ground size from network
00067                 numHosts=getParentModule()->par("numHosts");
00068                 sideLength_X=getParentModule()->par("playgroundSizeX");
00069                 sideLength_Y=getParentModule()->par("playgroundSizeY");
00070
00071                 // String to capture parameters
00072                 const char* buf;
00073
00074                 std::string parmts;
00075                 //Select mobility type
00076                 if (mobType.compare("CMM")==0)
00077                         parmts="../src/SocialMobility/movGen";
00078                 else if (mobType.compare("HCMM")==0)
00079                         parmts="../src/SocialMobility/homeMovGen";
00080                 else
00081                         parmts="../src/SocialMobility/enMovGen";
00082
00083                 std::stringstream out;
00084
00085                 // Generate Input Seed for random generator
00086                 srand ( time(NULL) );
00087                 inputSeed=par("randSeed");
00088                 // If input seed has default value set a random one
00089                 if(inputSeed==0)
00090                         inputSeed=intrand(100000);
00091
00092                 ev << "Social Mobility model created with random seed: " << inputSeed << endl;
00093
00094                 //Create the output file using the run number to allow multiple runs
00095                 if(generateXML==true) {
00096                         out << " -x" << " socMov-" << ev.getConfigEx()->getActiveRunNumber();
00097                 }
00098
00099                 // Add boolean parameters to string
00100                 if(deterministicOn==true)
00101                         parmts+=" -d on";
00102                 else
00103                         parmts+=" -d off";
00104                 if(communitiesTracesOn==true)
00105                         parmts+=" -b on";
00106                 else
00107                         parmts+=" -b off";
00108                 if(colocationTracesOn==true)
00109                         parmts+=" -A on";
00110                 else
00111                         parmts+=" -A off";
00112                 if(girvanNewmanOn==true)
00113                         parmts+=" -a on";
00114                 else
00115                         parmts+=" -a off";
00116                 if(outAdjacency==true)
00117                         parmts+=" -o on";
00118                 else
00119                         parmts+=" -o off";
00120                 if(readAdjacency==true)
00121                         parmts+=" -i " + inputFile;
00122
00123                 // Copying parameters to string
00124                 out << " -n " << numHosts;
00125                 out << " -t " << totalSimulationTime;
00126                 out << " -r " << reconfigurationInterval;
00127                 out << " -s " << minHostSpeed;
00128                 out << " -S " << maxHostSpeed;
00129                 out << " -p " << connectionThreshold;
00130                 out << " -X " << sideLength_X;
00131                 out << " -Y " << sideLength_Y;
00132                 out << " -R " << numberOfRows;
00133                 out << " -C " << numberOfColumns;
00134                 out << " -T " << radius;
00135                 out << " -w " << rewiringProb;
00136                 out << " -G " << numberOfGroups;
00137                 out << " -c " << numberOfTravellers;
00138                 out << " -v " << travellerSpeed;
00139                 out << " -g " << inputSeed;
00140                 out << " -P " << pauseTime;
00141                 out << " -e " << numberOfEpochs;
00142                 parmts+=(out.str());
00143
00144                 buf = parmts.c_str();
00145                 buf = const_cast<char*>(buf);
00146
00147                 // Check if system responds
00148                 if (system(NULL)) puts ("Ok");
00149                     else exit(1);
00150
00151                 // Create trace file
00152                 if(totalSimulationTime!=-1) {
00153                         if(system(buf)==0)
00154                         {
00155                                 EV << "Community Model trace file created with the command:"<< endl;
00156                                 EV << buf << endl;
00157                         }
00158                         else {
00159                                 EV << buf << endl;
00160                                 error("Problem in creating Community Model trace file...");
00161                         }
00162                 }
00163
00164         }
00165 }

Member Data Documentation

bool socMovGen::colocationTracesOn [protected]

Sets the colocation traces on/off.

bool socMovGen::communitiesTracesOn [protected]

Sets the communities traces on/off.

double socMovGen::connectionThreshold [protected]

Sets the connection threshold, for which a frienship is regarded.

bool socMovGen::deterministicOn [protected]

Sets the deterministic selection of the nodes on/off. If true the selection is deterministic, if false is probabilistic.

bool socMovGen::generateXML [protected]

Generates XML.

bool socMovGen::girvanNewmanOn [protected]

Sets the Girvan-Newman algorithm on/off.

std::string socMovGen::inputFile [protected]

Sets the the name of the input adjacency file.

unsigned socMovGen::inputSeed [protected]

Sets the seed of the Random Number Generator.

double socMovGen::maxHostSpeed [protected]

Sets upper bound of the speed of the hosts (in m/s).

double socMovGen::minHostSpeed [protected]

Sets lower bound of the speed of the hosts (in m/s).

std::string socMovGen::mobType [protected]

Three mobility models are supported, the CMM, the HCMM and the ECMM.

int socMovGen::numberOfColumns [protected]

Sets the number of columns of the simulation ground.

int socMovGen::numberOfEpochs [protected]

Sets the number of the epochs.

int socMovGen::numberOfGroups [protected]

Sets the initial number of groups for the Caveman model.

int socMovGen::numberOfRows [protected]

Sets the number of rows of the simulation ground.

int socMovGen::numberOfTravellers [protected]

Sets the number of travelers.

int socMovGen::numHosts [protected]

Used for the total number of hosts participating in the simulation.

bool socMovGen::outAdjacency [protected]

Sets the output adjacency file generation on/off.

int socMovGen::pauseTime [protected]

Sets the maximum pause time duration.

double socMovGen::radius [protected]

Sets the transmission range (in m) -- not so important.

bool socMovGen::readAdjacency [protected]

Indicates whether an input adjacency file will be used.

double socMovGen::reconfigurationInterval [protected]

Sets the reconfiguration interval.

double socMovGen::rewiringProb [protected]

Sets the rewiring probability during the model initialization.

double socMovGen::sideLength_X [protected]

Defines the x-axis length of the simulation ground (in meters).

double socMovGen::sideLength_Y [protected]

Defines the y-axis length of the simulation ground (in meters).

double socMovGen::totalSimulationTime [protected]

Sets the total simulation time.

double socMovGen::travellerSpeed [protected]

Sets the speed of the travelers.

The documentation for this class was generated from the following files:
Generated on Mon Aug 13 18:29:03 2012 for ECMM by  doxygen 1.6.3
